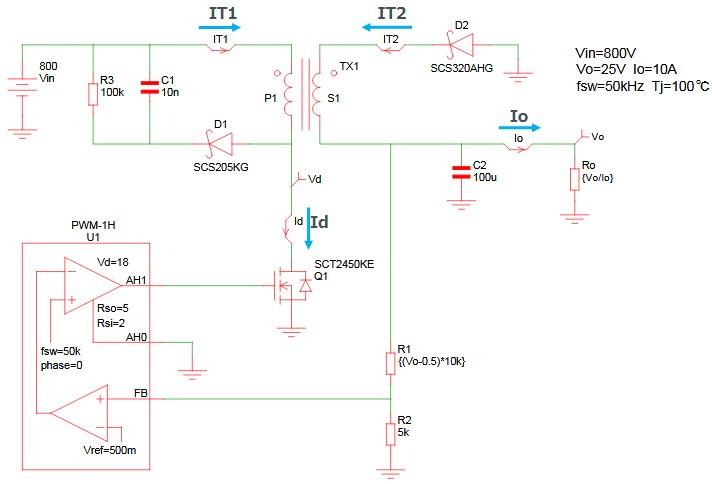

dc-dc flyback converter vin=800v vo=25v io=10a : sct2450ke, scs205kg, scs320ahg
key features
  • input : vin=800v
  • output : vo=25v

    io=10a

  • gatedrive : vd=18v

    r source=5ω
    r sink=2ω

  • q1 : sct2450ke

    sic mosfet (1200v 10a)

  • d1 : scs205kg

    sic sbd (1200v 5a)

  • d2 : scs320ahg

    sic sbd (650v 20a)

  • c1 : 10nf,   c2 : 100uf
  • tj : 100°c
used products
last update:2019/03/14
loading

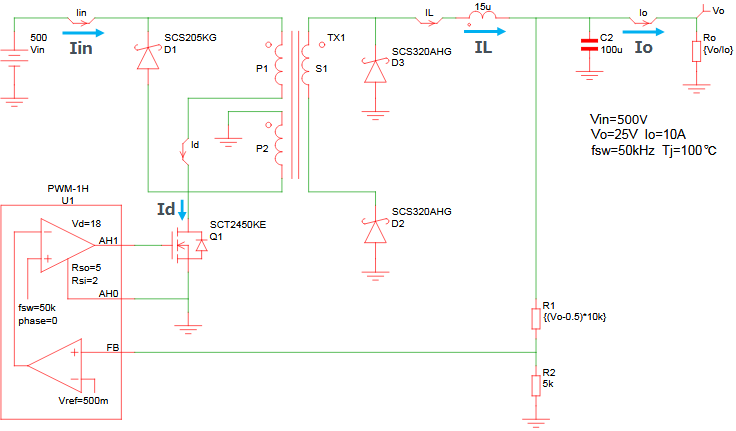

dc-dc forward converter vin=500v vo=25v io=10a : sct2450ke, scs205kg, scs320ahg
key features
  • input : vin=500v
  • output : vo=25v

    io=10a

  • gatedrive : vd=18v

    r source=5ω
    r sink=2ω

    • q1 : sct2450ke

    sic mosfet (1200v 10a)

  • d1 : scs205kg

    sic sbd (1200v 5a)

  • d2,d3 : scs320ahg

    sic sbd (650v 20a)

  • c1 : 100uf
  • tj : 100°c
used products
last update:2019/03/14
loading


dc-dc llc buck converter vo=12v io=50a : sct3160kl, rb238t-40
key features
  • input : vin=800vdc
  • output : vo=12vdc

    io=50adc

  • gatedrive : vd=18v

    r source=5ω
    r sink=2ω

  • q1,q2 : sct3160kl

    sic mosfet (1200v 17a)

  • d1,d2 : rb238t-40

    sbd (40v 40a)

  • l1 : 200uh
  • c1 : 50nf,   c2 : 1mf,   c3 : 100pf
  • tj : 100°c
used products
last update:2019/03/14
loading

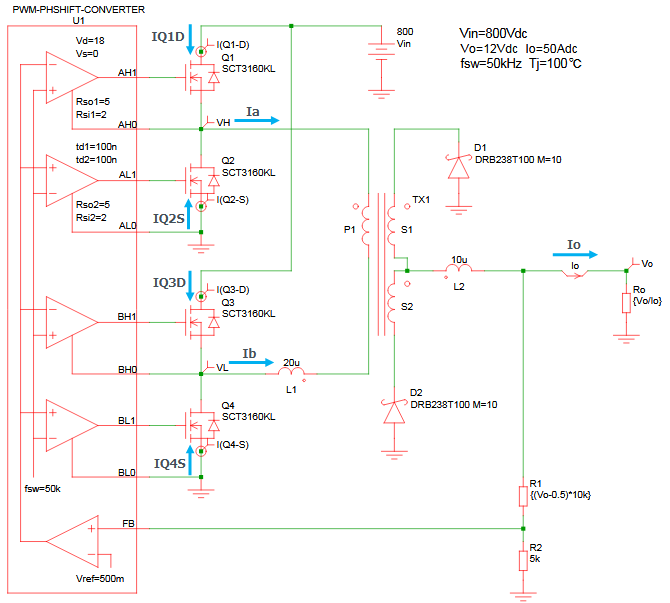

dc-dc phase-shift buck converter vo=12v io=50a : sct3160kl, rb238t-100
key features
  • input : vin=800vdc
  • output : vo=12vdc

    io=50adc

  • gatedrive : vd=18v

    r source=5ω
    r sink=2ω

  • q1,q2,q3,q4 : sct3160kl

    sic mosfet (1200v 17a)

  • d1,d2 : rb238t100

    sbd (40v 20a)

  • l1 : 20uh, l2 : 10uh
  • tj : 100°c
used products
last update:2019/03/14
loading

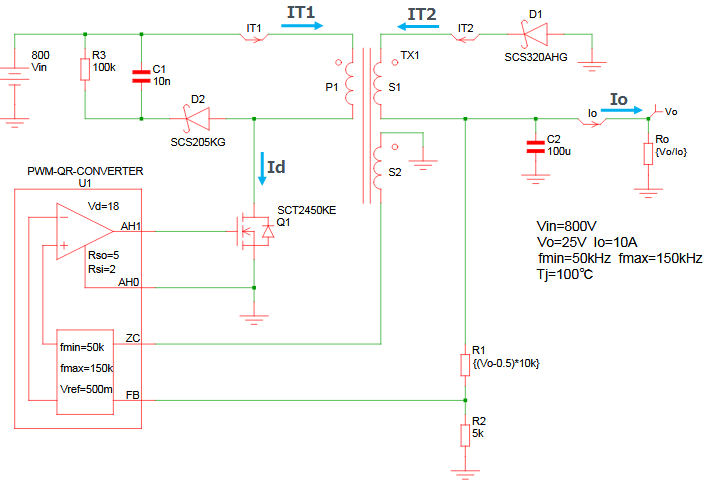

dc-dc quasi-resonant converter vin=800v vo=25 io=10a : sct2450ke, scs205kg, scs320ahg
key features
  • input : vin=800v
  • output : vo=25v

    io=10a

  • gatedrive : vd=18v

    r source=5ω
    r sink=2ω

  • q1 : sct2450ke

    sic mosfet (1200v 10a)

  • d1 : scs320ahg

    sic sbd (650v 20a)

  • d2 : scs205kg

    sic sbd (1200v 5a)

  • c1 : 10nf,   c2 : 100uf
  • tj : 100°c
used products
last update:2019/03/14
loading
