drive board for three-phase brushless motor using three hall sensors (pre-driver bm64300muv)

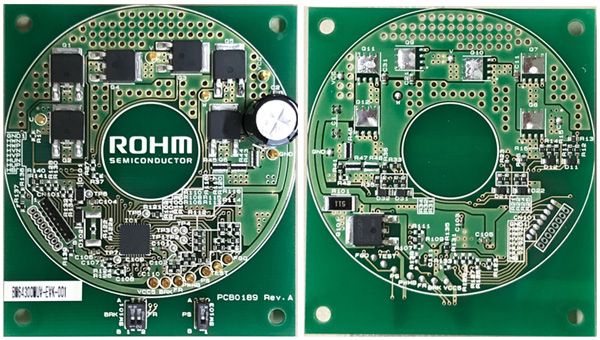

evaluation board to drive a 3 hall sensor three phase brushless dc motor with supply voltage of 48v (typ) and motor current of 8a (max) . it consists of a 3 hole sensor three phase brushless dc motor pre-driver and 6 nch mosfets. the rotor position is detected by 3 hole sensors, and the sin wave drive realizes silent and low vibration, and the automatic advance angle control enables highly efficient motor drive. the output mosfet can be mounted in the to252 package or the hsop8 package. in this board, the to252 package product is mounted.

  • 3 hole sensor three phase brushless dc motor pre-driver and output mos n n configuration
  • supply voltage 48v(typ)
  • output current 8a(max)
  • sine-wave commutation pwm drive, automatic advance angle control
  • number of motor poles setting function
  • soft start function
  • dead time setting function
  • power save input/ rotation direction setting input/ short brake input
bm64300muv-evk-001

design resources


  • bm64300muv-evk-001

specifications


board number input voltage output current driving method other features size
bm64300muv-evk-001 28v to 63v 8a(max.) depending on driving capability of mosfet 3 hall sensor sine-wave commutation drive, automatic advance angle control input: control input (pwm), power save, rotation direction setting, short brake.
output: fg output.		 60mm×68mm

distribution inventory


board number distributor quantity available

key components


board number part number product category datasheet status spice ltspice thermal model symbol & footprint 3d step samacsys ecad library calc tool rohm solution simulator
bm64300muv-evk-001 bm64300muv 3 phase brushless dc motor drivers recommended -
bm64300muv-evk-001 rd3p175sn 12 to 150v mosfets recommended -
