pwm type dc/dc converter ic included 650v mosfet
bm2p094f
主要规格
特性：
fb olp
auto restart
br uvlo
no
external latch function
no
ac monitor function
no
vh terminal uvlo
no
frequency reduction function
yes
current detection resistors
external
over current detection voltage (typ.)[v]
0.4
dynamic over current detection
no
fet
integrated
controller type
pwm
vin1(min.)[v]
8.9
vin1(max.)[v]
26
withstand voltage [v]
650
sw frequency (max.)[khz]
65
vcc ovp
auto restart
br pin
no
on resistor (mosfet)[ω]
8.5
channel
1
light load mode
no
en
no
operating temperature (min.)[°c]
-40
operating temperature (max.)[°c]
105
package size [mm]
5x6.2 (t=1.71)
特点：
・ pwm frequency : 65khz・ pwm current mode method
・ burst operation when load is light
・ frequency reduction function
・ built-in 650v start circuit
・ built-in 650v switching mosfet
・ vcc pin under voltage protection
・ vcc pin overvoltage protection
・ source pin open protection
・ source pin short protection
・ source pin leading-edge-blanking function
・ per-cycle over current protection circuit
・ soft start
・ secondary over current protection circuit
reference design / application evaluation kit
-

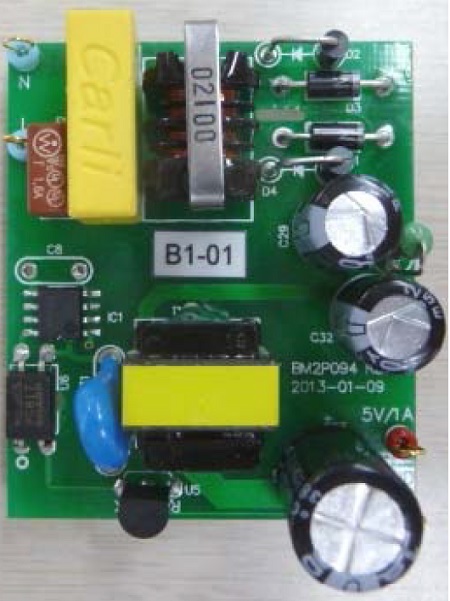

- evaluation board - bm2p094f-evk-001
isolated type flyback convertor 5v 1a
| user guide | schematic | part list |
|---|---|---|
