schottky barrier diodes
rb160l-40
为支持现有客户而生产的产品。不对新设计出售此产品。
主要规格
rb160l-40 的替换产品
| part number |
|
|
|---|---|---|
| ordering part number | rb160l-40te25 | rbr1lam40atr |
| similar level | - | similar specification |
| data sheet | ||
| supply status | not recommended for new designs | recommended |

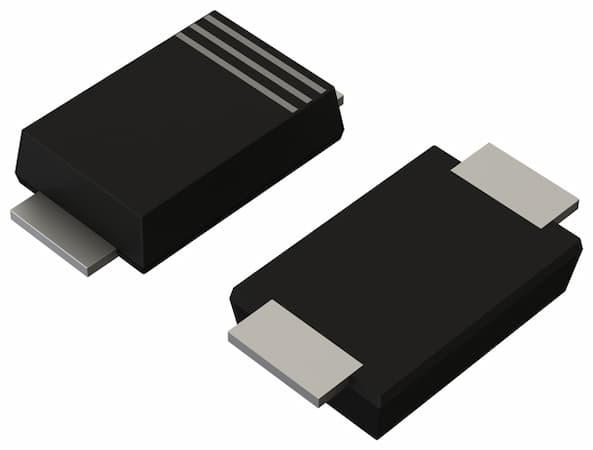

| package | pmds | pmdtm |
| unit quantity | 1500 | 3000 |
| minimum packing quantity | 1500 | 3000 |
| packing type | taping | taping |
| rohs | yes | yes |
| package code | do-214ac (sma) | sod-128 |
| package size [mm] | 2.6x5 (t=2.2) | 2.5x4.7 (t=1.05) |
| configuration | - | single |
| number of terminal | 2 | 2 |
| vrm [v] | 40 | 40 |
| reverse voltage vr [v] | 40 | 40 |
| average rectified forward current io [a] | 1.0 | 1.0 |
| ifsm [a] | 70.0 | 40.0 |
| forward voltage vf (max.)[v] | 0.55 | 0.52 |
| if @ forward voltage [a] | 1.0 | 1.0 |
| reverse current ir (max.)[ma] | 0.1 | 0.05 |
| vr @ reverse current[v] | 40 | 40 |
| storage temperature (min.)[°c] | -40 | -55 |
| storage temperature (max.)[°c] | 150 | 150 |
| mounting style | surface mount | surface mount |
