超快速恢复二极管主要规格
特性：
configuration
single
package code
sod-323he
package(jeita)
sc-108b
mounting style
surface mount
number of terminal
2
vrm[v]
200
reverse voltage vr[v]
200
average rectified forward current io[a]
0.5
ifsm[a]
6
forward voltage vf(max.)[v]
0.98
if @ forward voltage [a]
0.5
reverse current ir(max.)[ma]
0.01
vr @ reverse current [v]
200
trr(max.)[ns]
25
if @ trr [ma]
500
ir @ trr [a]
1
storage temperature (min.)[°c]
-55
storage temperature (max.)[°c]
150
package size [mm]
1.4x2.5 (t=0.8)
特点：
- small mold type (tumd2m)
- high speed switching
- low forward voltage
reference design / application evaluation kit
-
- evaluation board - bm2p016t-evk-001
isolation fly-back type pwm method output 30w 24v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p016t-evk-002
isolation fly-back converter pwm method output 22.5w 15v
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm1p061fj-evk-001
24v 2a output, bm1p061fj evaluation board
| user guide | schematic | part list |
|---|---|---|
-
- evaluation board - bm1p10cfj-evk-001
isolated flyback type pwm mode 48w 24v output
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bm2p060mf-evk-001
flyback type pwm mode isolated 24v 1.67a 40w
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bd7682fj-lb-evk-402
isolation fly-back converter quasi-resonant method output 24 w 24 v
| user guide | block diagram | schematic | part list | layout (pdf) |
|---|---|---|---|---|
-
- evaluation board - bd7692fj-evk-001
pfc bcm (boundary current mode) method output 200 w 400 v (bd7692fj)
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bd7693fj-evk-001
pfc bcm (boundary current mode) method output 200 w 400 v (bd7693fj)
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-

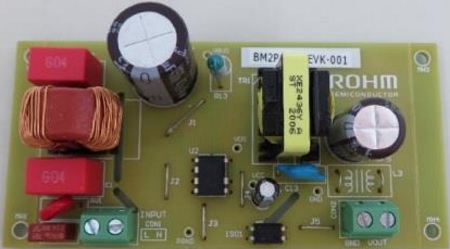

- evaluation board - bm2p134e-evk-001
isolated pwm type, 12w 12v/1a
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- evaluation board - bd7695fj-evk-001
boundary current mode method 200 w 400 v output (bd7695fj)
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-

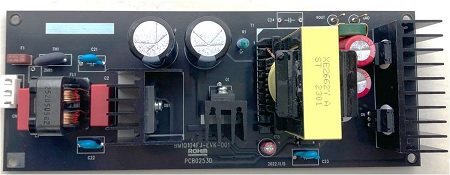

- evaluation board - bm1q104fj-evk-001
quasi-resonant method isolated 90w 20v 4.5a
| user guide | schematic | part list | layout (pdf) |
|---|---|---|---|
-
- reference design - refpdt001
- integrating battery charging algorithm, 2.5kw llc dcdc converter
the refpdt001 evk is a digital design platform for 2.5kw dc/dc convertor based on full bridge llc topology with an output 55v/ 45a with an input dc bus volatge of 380v. the evk supports battery charging alogrithm with constant voltage and constant curnt operation to be used with 48v lithum ion battery.
- constant current operation
- constant voltage operation
- output over voltage protection
- output over current protection
- reverse battery protection
- can communication
- rs485 communication
- lcd interface
-
- reference design - refld002
- 适用于lidar的大功率激光二极管高速驱动ecogan™和高速栅极驱动器参考设计
lidar传感器不仅适用于车辆的自动驾驶应用，还适用于工业和基础设施领域的众多应用。lidar传感器需要具备更远的感测距离和高分辨率，不仅要提高激光二极管的特性，还需要以更快的速度和更高的功率驱动激光二极管。rohm拥有905nm脉冲的高功率窄线宽激光二极管产品群（rld90qzwx系列）。另外，rohm还提供包括可高速驱动的下一代gan器件“ecogan™”和用于gan hemt的高速栅极驱动器在内的参考设计，这将非常有助于提高lidar传感器的特性（距离、分辨率）。
- enables high-speed driving of laser diodes - a key device in lidar applications
- includes next-gen ecogan™ devices
- built-in high-speed gate driver for gan hemts (bd2311nvx-c)
- two circuit types: square wave and resonant
